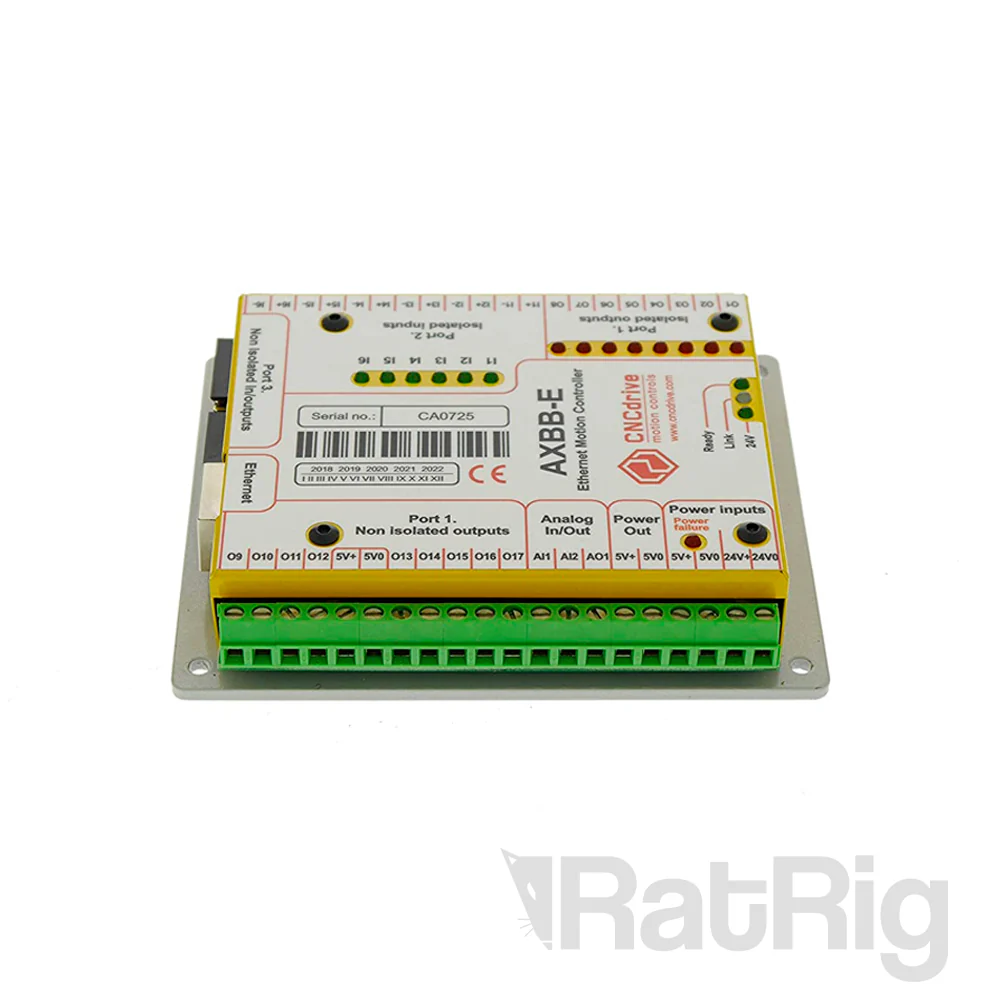

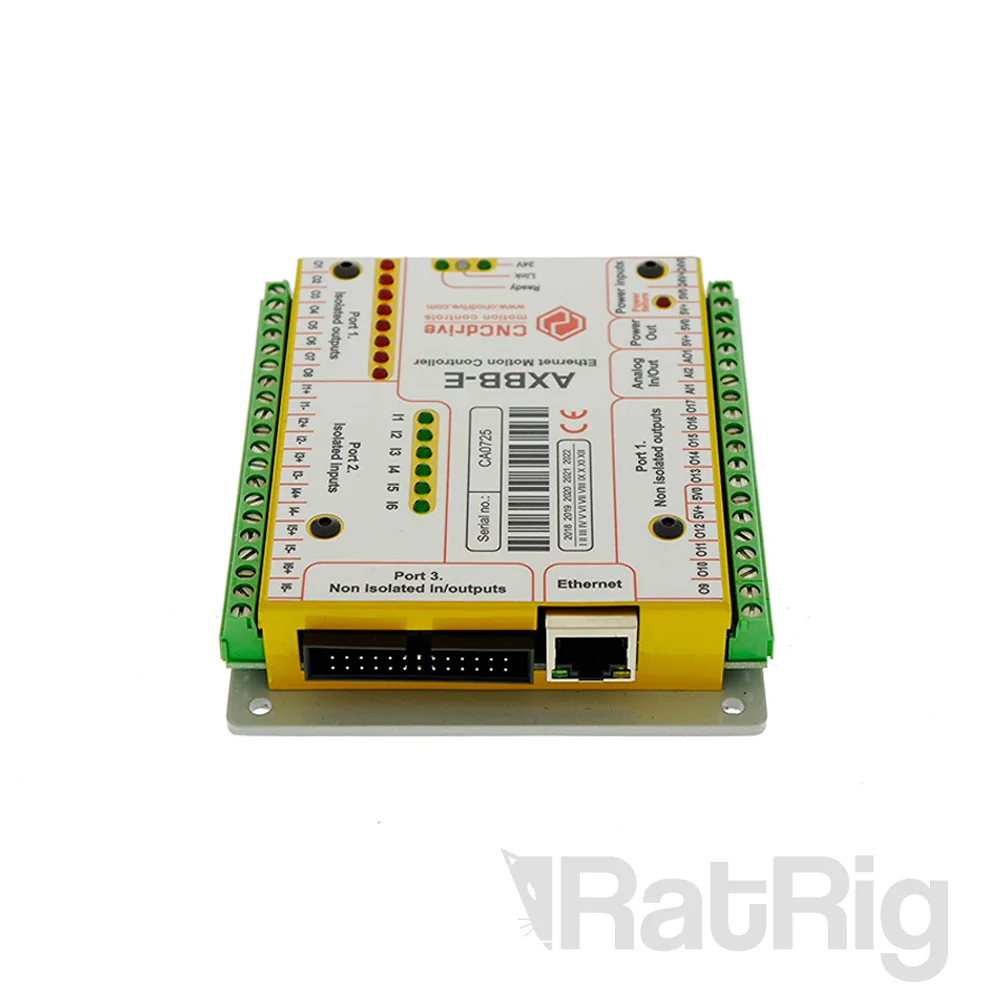

CNCdrive AXBB-E Ethernet Motion Controller & Breakout Board Combo (UCNC, Mach3, Mach4)

The AXBB-E is a motion controller and breakout board combination with ethernet interface.
The device can communicate with a connection to the control computer’s network card. The connection can be built with direct connection or via router/switch devices in a local area network (LAN). This controller works with UCCNC, Mach3 and Mach4 Software.

Features:
• Complete motion controller and breakout board solution in a single board.
• 8 optically isolated high speed N-channel power mosfet transistor outputs.(NPN)
• 9 non-isolated buffered TTL outputs to control step/dir signals, laser driver etc.
• Isolated charge pump output with power N-channel mosfet transistor.
• 6 high speed optoisolator inputs.
• 1 IDC26 non-isolated extension port with standard LPT port pinout (12 outputs and 5 inputs).
• LED indicators on isolated I/Os.
• Isolated I/Os are 24Volts capable.

Additional Information:
You can find the CNCdrive AXBB-E Ethernet Motion Controller documentation here.
