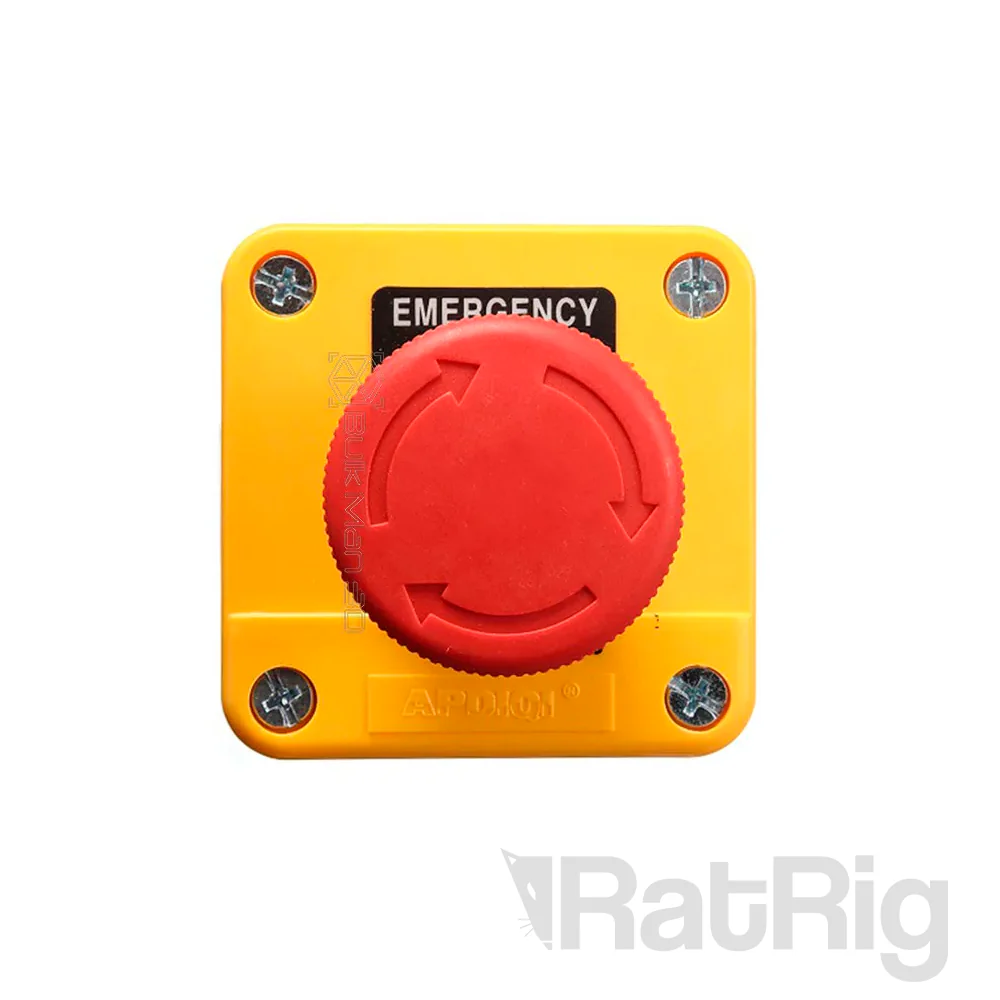

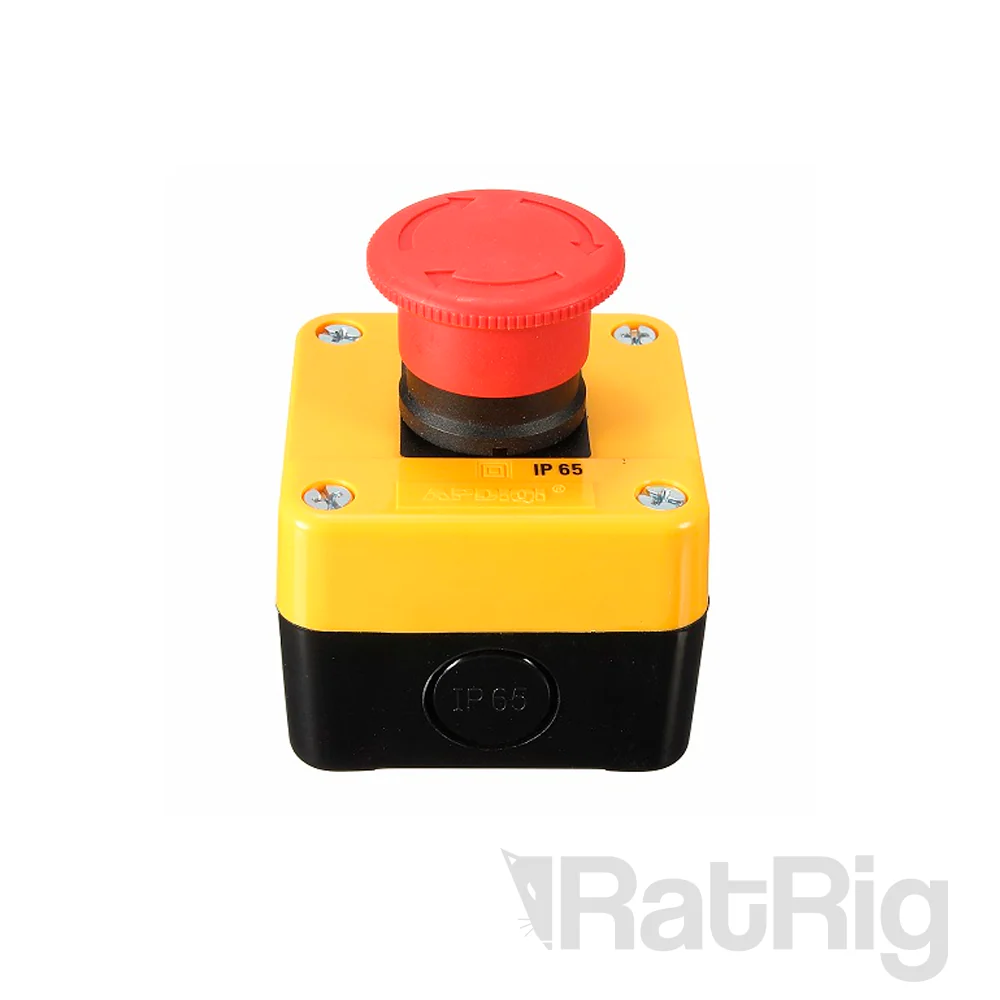

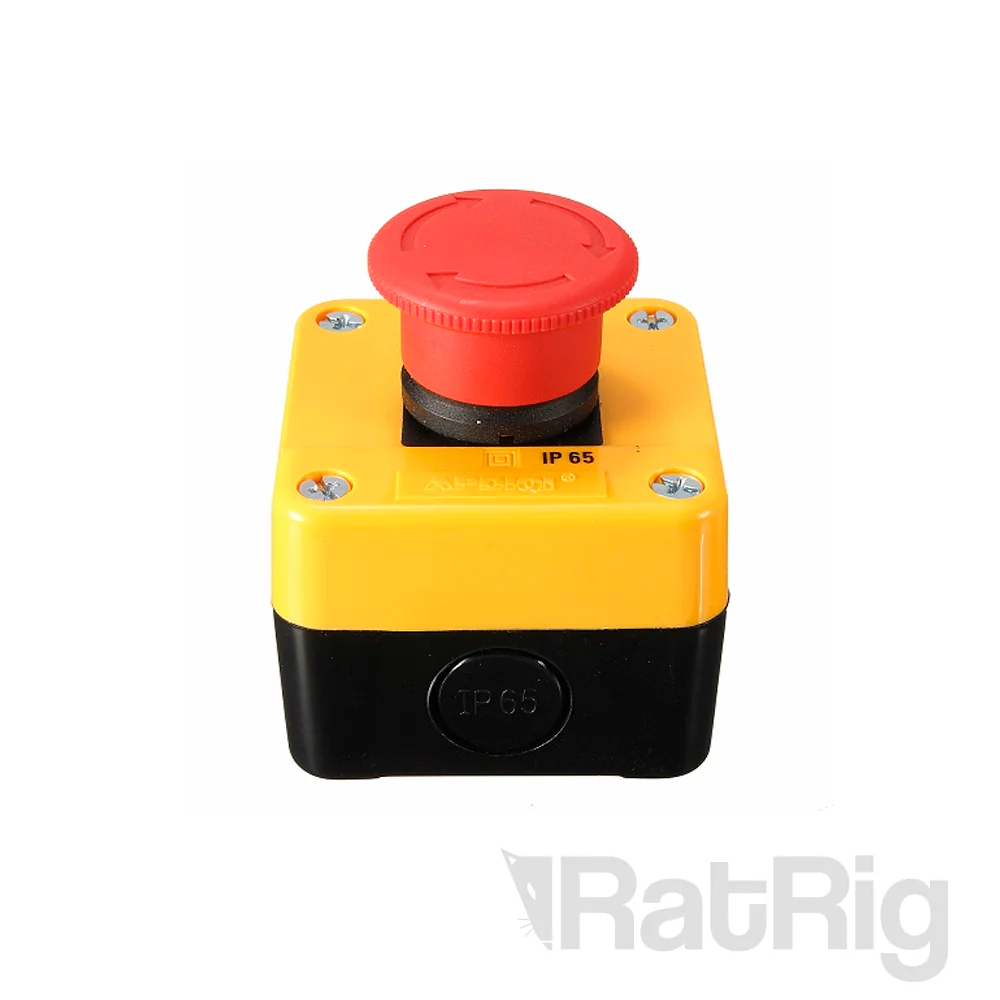

Emergency Stop Button with Cable

Emergency Stop Button with Cable

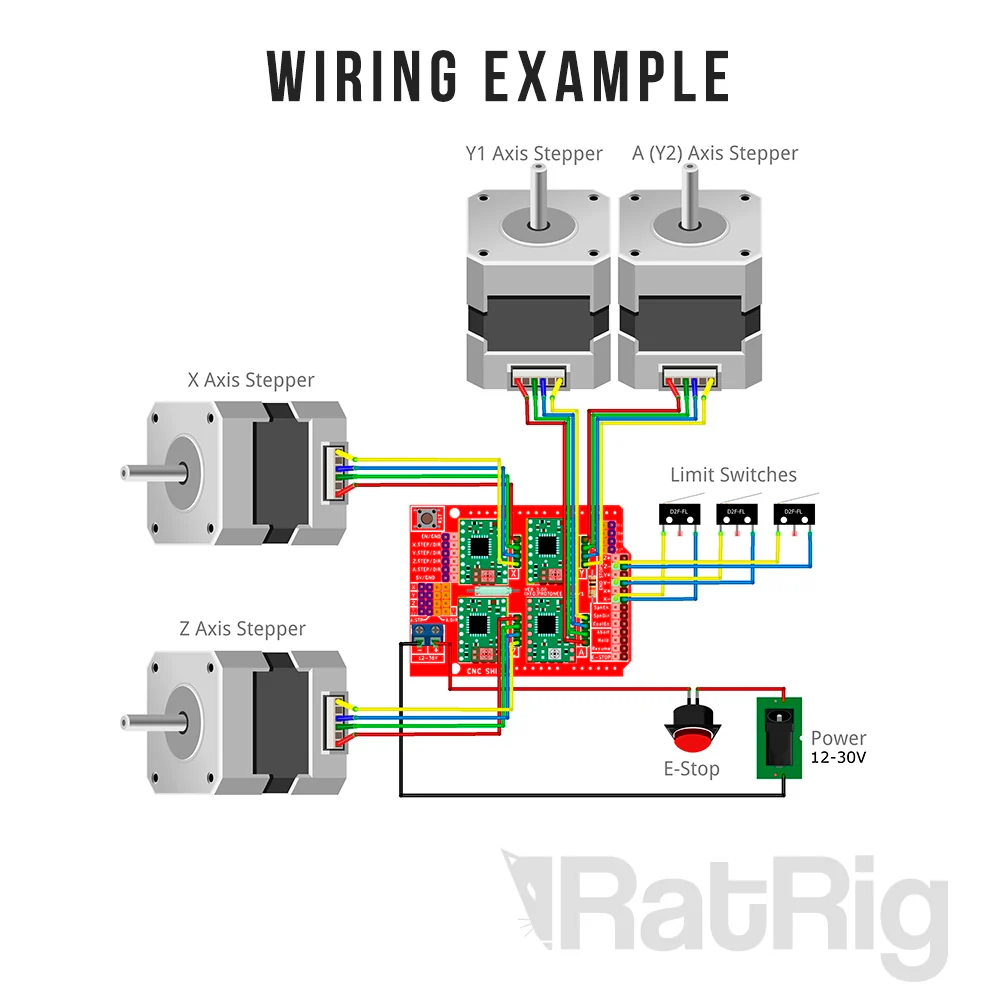

Essential to any CNC machine or even 3D printer builds, is a big red Emergency STOP switch. Easy to see and hit in case of an emergency.
Once pressed, the switch will lock in the down position and must be rotated to be released, which helps prevent accidental reactivation.

Mechanical Specifications:
• Diameter of Red Mushroom: 40 mm
• Turn to release type
• Dimension: 66mm X 66m
• Torque: 0.9 Nms
• Waterproof and Impermeable IP65
• Mechanical Life: 300,000

Electrical Specifications:
• Ith: 10A, UI AC 660V.
• Rated Load: 220VAC/6A 380VAC/4A 660VAC/2A 440VDC/0.3A 220VDC/0.5A 110VDC/1A
• TYPE: N/C
• Withstand Voltage: 2500V /60S
• Temperature: -25~+55
• Contact resistance: <25mΩ

Package Includes:
• 1x Emergency Stop Switch
• 1x Cable
