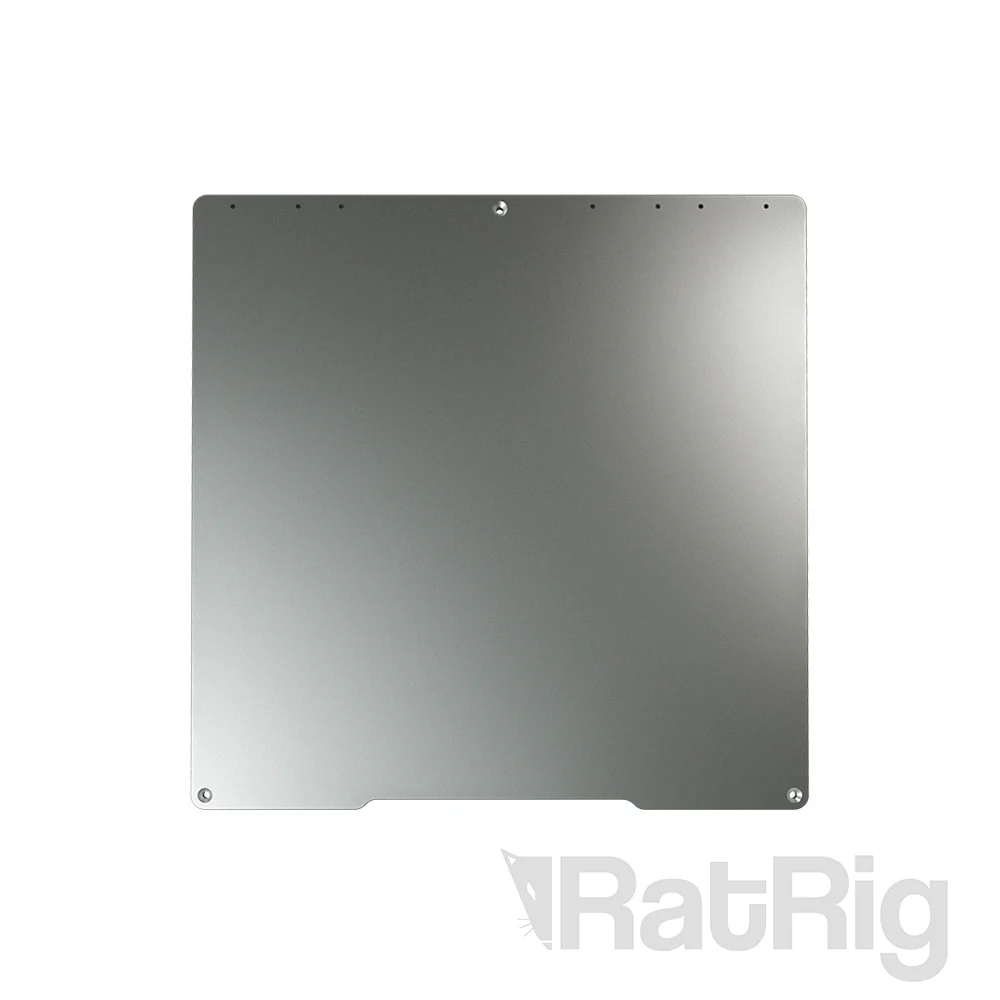

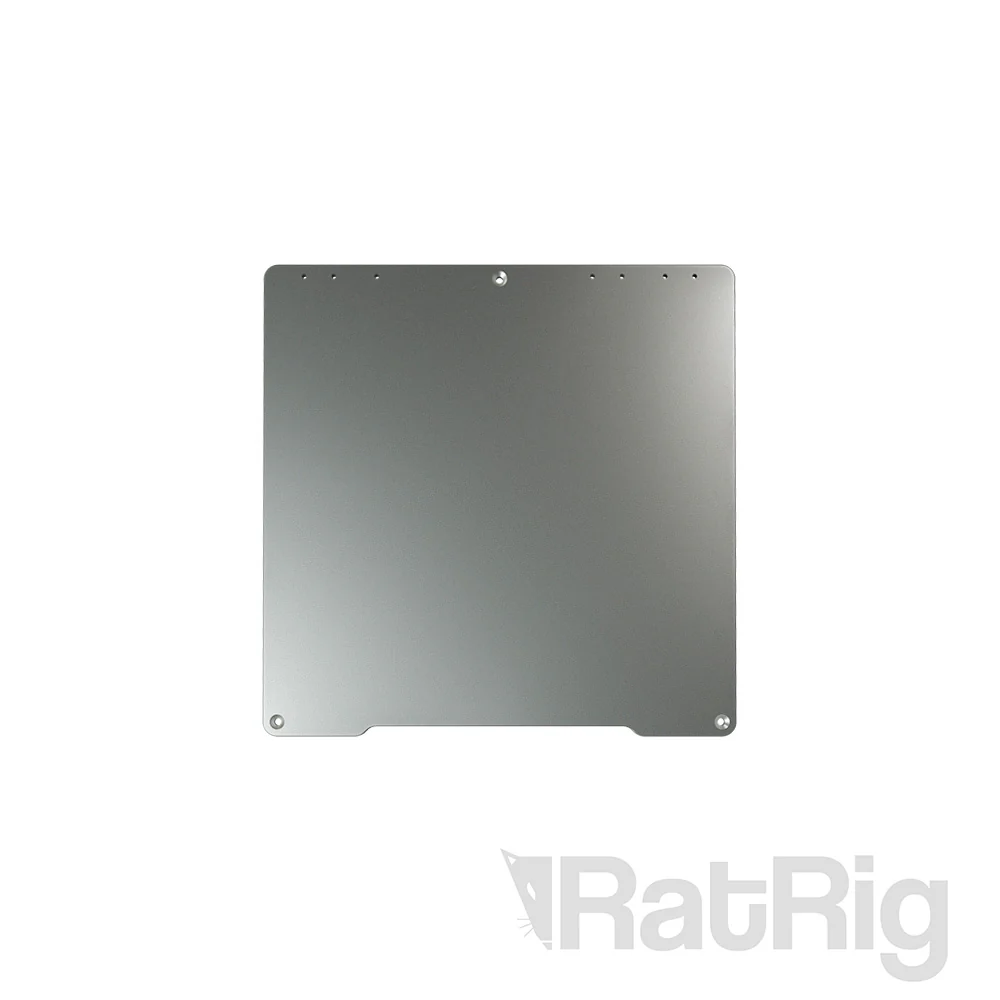

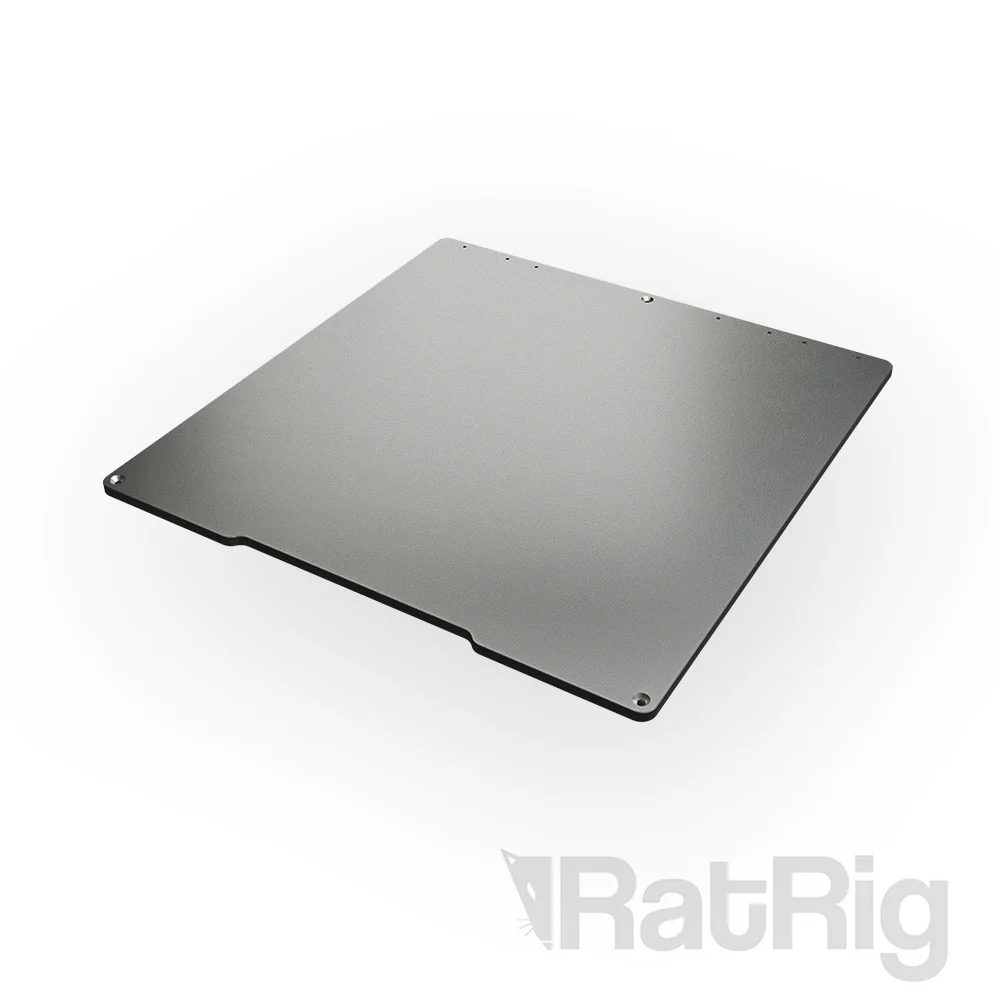

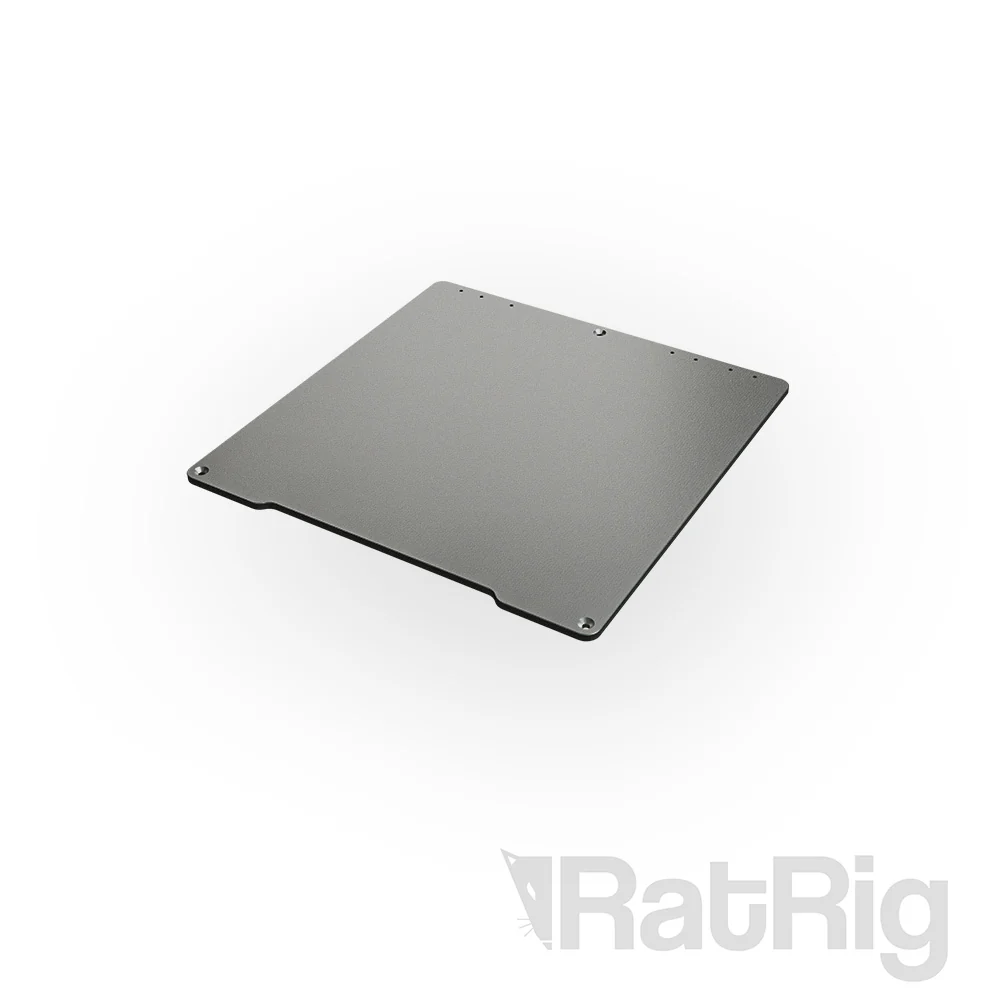

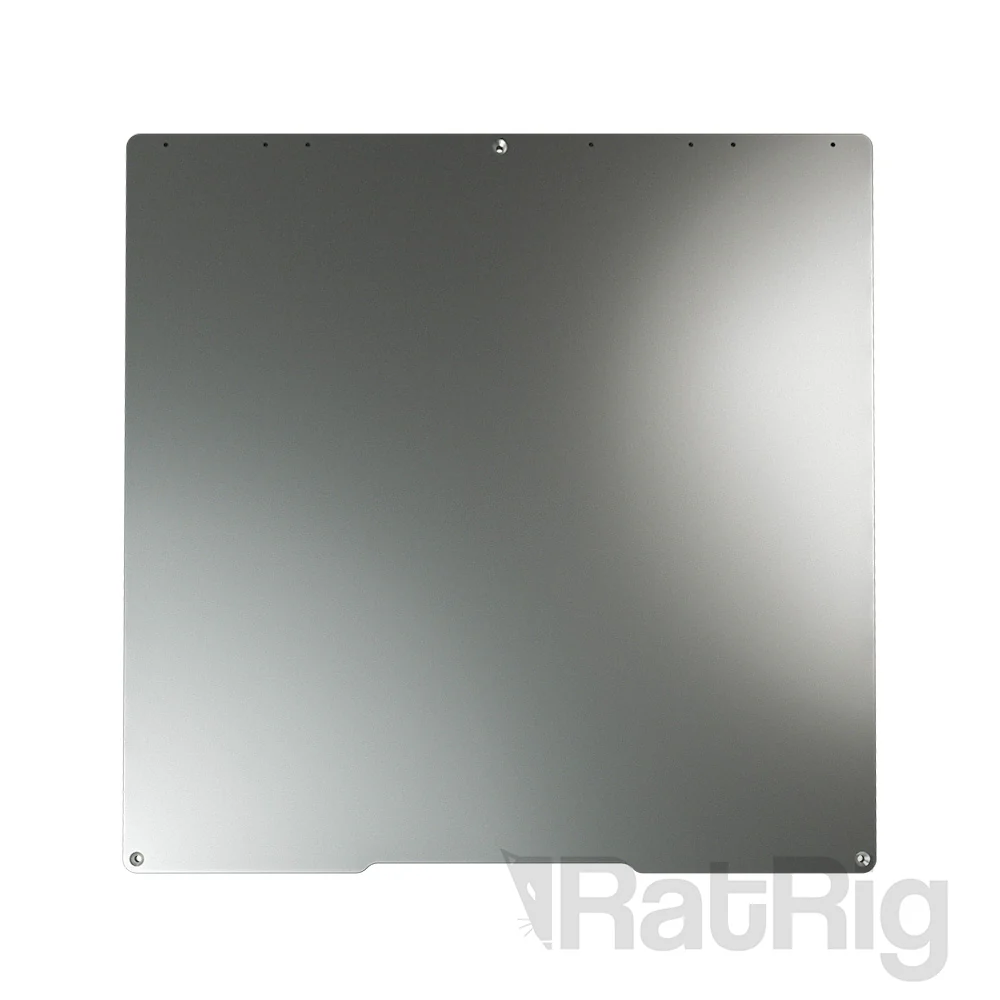

V-Core 4 Bed Plate - Milled Cast tooling plate - Pre-Machined - (Multiple Sizes)
No more sourcing superflat plates and drilling them at home! We've done it for you. Finally a 8mm pre-machined custom cast plate at a great price. Note: 329x329mm is only available in 6mm.
These were custom made for the V-Core 4, but versatile enough to be used on a number of different printers. With that in mind, we set out to design a pre-machined cast tooling plate that would have great flatness at a great price. There are many cast plates out there, but very few are nicely pre-machined with countersunk mounting holes, chamfering etc.
Specs:
- Material: Cast Aluminium AL5083 8mm thick (329x329mm is only available in 6mm)
- Surface Machining: Milled surface for final flatness
- Available in 329mm*329mm*6mm, 429mm*429mm*8mm, 529mm*529mm*8mm sizes
- Countersinks for M5 Countersink screws (ie. DIN7991)
- 7x threaded mounting points for acessories
Our custom Keenovo heatpads are designed specifically for these plates, with the wiring bundle placed slightly off center, ideal for 3 point kinematic setups. Find those in our store.
Original: $64.85
-70%$64.85
$19.45Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
No more sourcing superflat plates and drilling them at home! We've done it for you. Finally a 8mm pre-machined custom cast plate at a great price. Note: 329x329mm is only available in 6mm.
These were custom made for the V-Core 4, but versatile enough to be used on a number of different printers. With that in mind, we set out to design a pre-machined cast tooling plate that would have great flatness at a great price. There are many cast plates out there, but very few are nicely pre-machined with countersunk mounting holes, chamfering etc.
Specs:
- Material: Cast Aluminium AL5083 8mm thick (329x329mm is only available in 6mm)
- Surface Machining: Milled surface for final flatness
- Available in 329mm*329mm*6mm, 429mm*429mm*8mm, 529mm*529mm*8mm sizes
- Countersinks for M5 Countersink screws (ie. DIN7991)
- 7x threaded mounting points for acessories
Our custom Keenovo heatpads are designed specifically for these plates, with the wiring bundle placed slightly off center, ideal for 3 point kinematic setups. Find those in our store.
